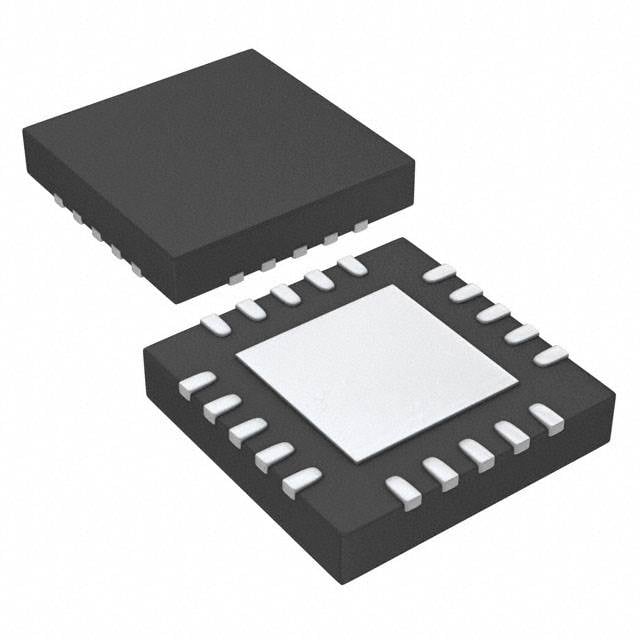

Listing photo. Request current-lot confirmation.
Order the TPS7A3301RGWT - 1-A, high-PSRR, negative, adjustable low-dropout voltage regulator with enable | RGW | 20 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS7A3301RGWT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS7A3301RGWT - 1-A, high-PSRR, negative, adjustable low-dropout voltage regulator with enable | RGW | 20 | -40 to 125 from Texas Instruments. |
| Package / case | VQFN (RGW) |
| Product category | Voltage regulators |
| Pins | 20 |
| Rating | Catalog |
| Vin (max) (V) | -3 |
| Vin (min) (V) | -36 |
| Iout (max) (A) | 1 |
| Output options | Adjustable Output, Negative Output |
| Vout (max) (V) | -1.2 |
| Vout (min) (V) | -33 |
| Fixed output options (V) | -1.2 |
| Noise (µVrms) | 16 |
| PSRR at 100 KHz (dB) | 64 |
| Iq (typ) (mA) | 0.21 |
| Features | Enable, Soft start |
| Thermal resistance θJA (°C/W) | 31 |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2.5 |
| Dropout voltage (Vdo) (typ) (mV) | 290 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 250 | SMALL T&R |
| In stock | 12,839 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.
