Manufacturer package reference image
Order the TPS7A4101DGNR - 50-mA, 50-V, low-IQ, adjustable low-dropout voltage regulator with enable | DGN | 8 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS7A4101DGNR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS7A4101DGNR - 50-mA, 50-V, low-IQ, adjustable low-dropout voltage regulator with enable | DGN | 8 | -40 to 125 from Texas Instruments. |
| Package / case | HVSSOP (DGN) |
| Product category | Voltage regulators |
| Pins | 8 |
| Rating | Catalog |
| Vin (max) (V) | 50 |
| Vin (min) (V) | 7 |
| Iout (max) (A) | 0.05 |
| Output options | Adjustable Output |
| Vout (max) (V) | 48 |
| Vout (min) (V) | 1.2 |
| Noise (µVrms) | 58 |
| PSRR at 100 KHz (dB) | 38 |
| Iq (typ) (mA) | 0.02 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 67 |
| Load capacitance (min) (µF) | 4.7 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2.5 |
| Dropout voltage (Vdo) (typ) (mV) | 290 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 2,500 | LARGE T&R |
| In stock | 1,152 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.

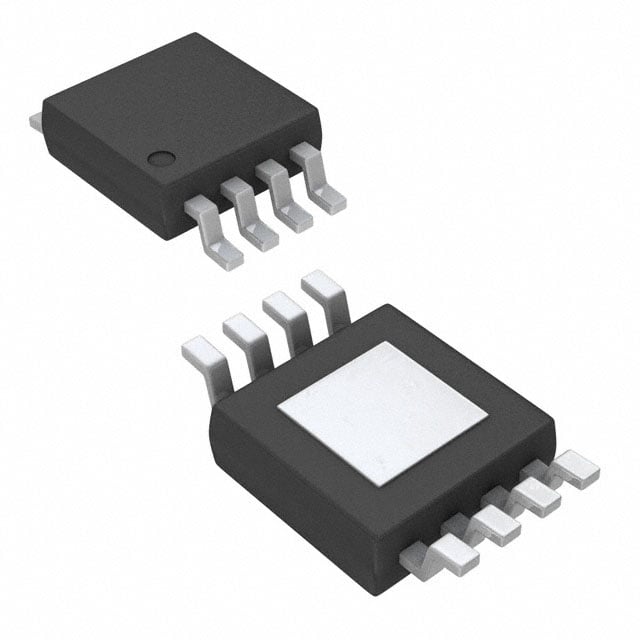

Manufacturer package reference image for HVSSOP (DGN). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the TI LDO series.
