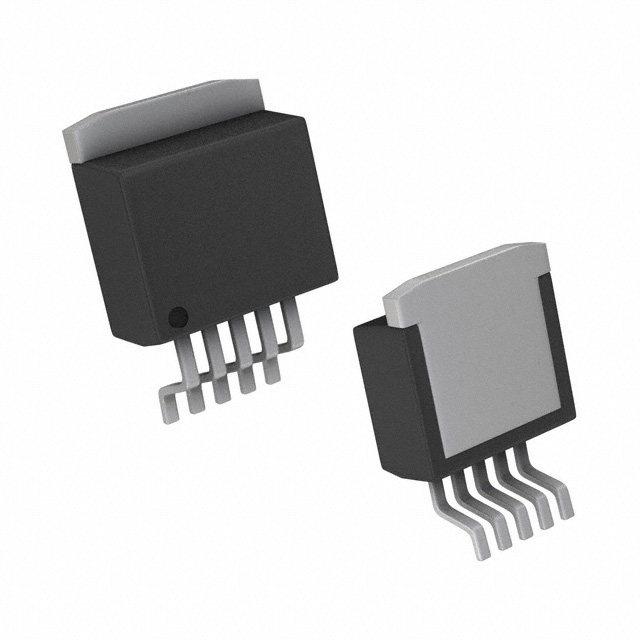

The Texas Instruments TPS7A4501KTTR is a 1.5 A adjustable low-dropout regulator supplied in a TO-263 package. It provides ±1% output accuracy, an output range from 1.21 V to 20 V and an enable pin for sequencing. Low dropout and integrated overcurrent and thermal protection make it suitable for point-of-load and post-regulation duties in industrial and battery-powered systems.
Key Specifications
| Manufacturer | Texas Instruments |
| Exact Manufacturer Part Number | TPS7A4501KTTR |
| Product Category | Power Management – Voltage Regulators |
| Series / Family | TPS7A45 |
| Package / Case | TO-263 (D2PAK) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +125°C |
| Power Supply | 1.9 V to 20 V (adjustable output 1.21 V to 20 V) |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 1.5 A low-dropout regulator
- Adjustable output from 1.21 V to 20 V
- ±1% output voltage accuracy
- Low dropout around 300 mV
- Overcurrent and overtemperature protection
- Enable pin for power sequencing
Applications
- Point-of-load regulation
- Post-regulation for switching supplies
- Industrial power rails
- Battery-powered systems
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
How much current can the TPS7A4501KTTR supply?
It is rated for 1.5 A with a typical dropout of about 300 mV.
Does it include protection features?
Yes, it integrates overcurrent, overtemperature and reverse-polarity protection.
