Manufacturer package reference image
1-A, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator with high-accuracy
Key Specifications
| Complete manufacturer part number | TPS7A9101DSKR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 1-A, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator with high-accuracy |
| Package / case | WSON (DSK) |
| Product category | Voltage regulators |
| Series / Family | TPS7A91 |
| Power supply | 1.4 V to 6.5 V input |
| Pins | 10 |
| TI package code | DSK |
| Mounting Type | Surface Mount |
| Output Current | 1 A |
| Output Voltage | 0.8 V to 5.2 V (adjustable) |
| Input Voltage | 1.4 V to 6.5 V |
| Dropout Voltage | 200 mV max @ 1 A |
| Output Noise | 4.7 µVRMS (10 Hz–100 kHz) |
| PSRR | 70 dB @ DC, 40 dB @ 100 kHz |
| Output Accuracy | 1.0% |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 4,378 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

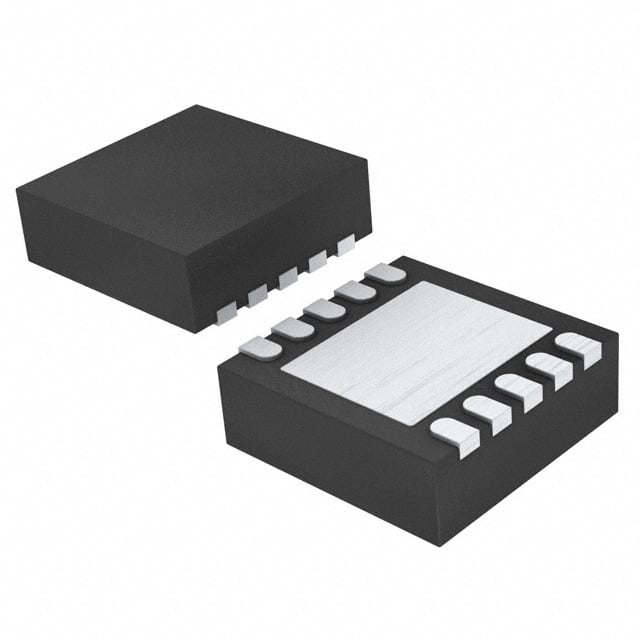

Manufacturer package reference image for WSON (DSK). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the TI LDO series.
