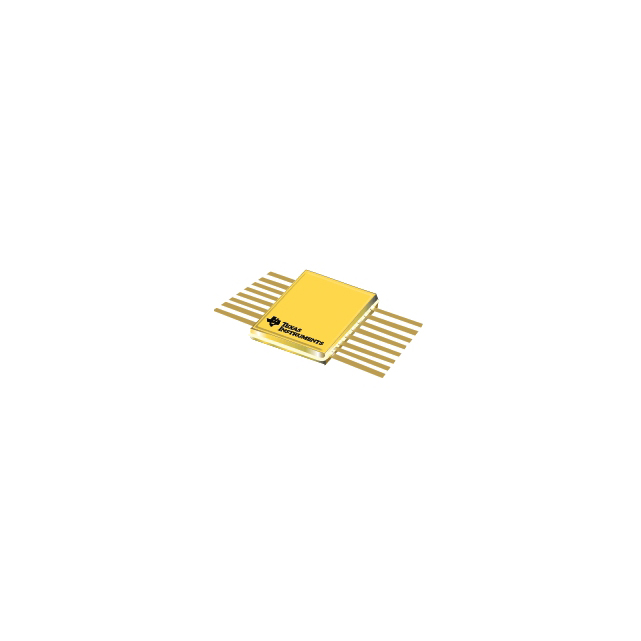

Listing photo. Request current-lot confirmation.
Order the TPS7H1101AHKR/EM - Radiation-hardened, QML-V, 1.5V to 7V input, 3A low-noise adjustable low-dropout (LDO) regulator | HKR | 16 | 25 to 25 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS7H1101AHKR/EM |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS7H1101AHKR/EM - Radiation-hardened, QML-V, 1.5V to 7V input, 3A low-noise adjustable low-dropout (LDO) regulator | HKR | 16 | 25 to 25 from Texas Instruments. |
| Package / case | CFP (HKR) |
| Product category | Voltage regulators |
| Series / Family | TPS7H1101A-SP |
| Power supply | 1.5 V to 7 V (adj 0.8 V to 6.6 V out) |
| Pins | 16 |
| Mounting Type | Surface Mount |
| Output Current | 1.5 A |
| Output Voltage | Adjustable 0.8 V to 6.6 V |
| Grade | Space (QMLV) |
| Radiation | TID-tolerant |
| Operating temperature (catalog record) | -55°C to +125°C |
| Rating | Space |
| Vin (max) (V) | 7 |
| Vin (min) (V) | 1.5 |
| Iout (max) (A) | 3 |
| Output options | Adjustable Output, Fixed Output |
| Vout (max) (V) | 6.65 |
| Vout (min) (V) | 0.8 |
| Noise (µVrms) | 20 |
| PSRR at 100 KHz (dB) | 25 |
| Iq (typ) (mA) | 7 |
| Features | Adjustable current limit, Current sense, Enable, Power good, Soft start |
| Thermal resistance θJA (°C/W) | 75.4 |
| Load capacitance (min) (µF) | 22 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2 |
| Dropout voltage (Vdo) (typ) (mV) | 210 |
| Radiation, SEL (MeV·cm2/mg) | 85 |
| Radiation, TID (typ) (krad) | 100 |
| Operating temperature (exact ordering record) | 25 to 25 °C |
| Standard quantity / packing | 25 | TUBE |
| In stock | 9,668 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.
Request a Quote
Part of the TI LDO series.
