Manufacturer package reference image
100-mA 30-V linear voltage regulator
Key Specifications
| Complete manufacturer part number | UA78L05ACDR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 100-mA 30-V linear voltage regulator |
| Package / case | SOIC (D) |
| Product category | Voltage regulators |
| Series / Family | UA78L05 |
| Power supply | Up to 30 V |
| Pins | 8 |
| TI package code | D |
| Mounting Type | Surface Mount |
| Type | LDO linear regulator |
| Output Current | 100 mA |
| Output Voltage | Fixed 5.0 V |
| Input | Up to 30 V |
| Operating temperature (manufacturer ordering record) | 0 °C to 125 °C |
| In stock | 10,787 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

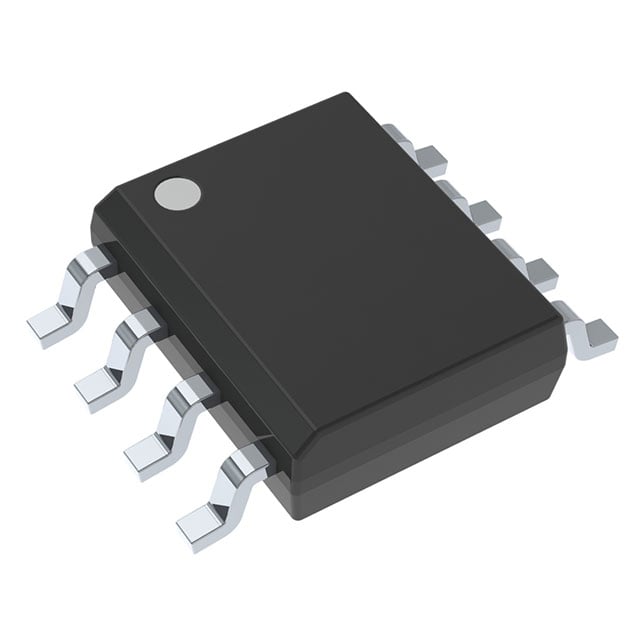

Manufacturer package reference image for SOIC (D). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the TI LDO series.
