Manufacturer package reference image
Enhanced 30V, 1.5A double ended 1MHz PWM controller with 9.2V/8.4V UVLO, 80% duty cycle, -40C to 85C
Key Specifications
| Complete manufacturer part number | UC2825DW |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Enhanced 30V, 1.5A double ended 1MHz PWM controller with 9.2V/8.4V UVLO, 80% duty cycle, -40C to 85C |
| Package / case | SOIC (DW) |
| Product category | AC/DC controllers |
| Pins | 16 |
| TI package code | DW |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 2,849 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

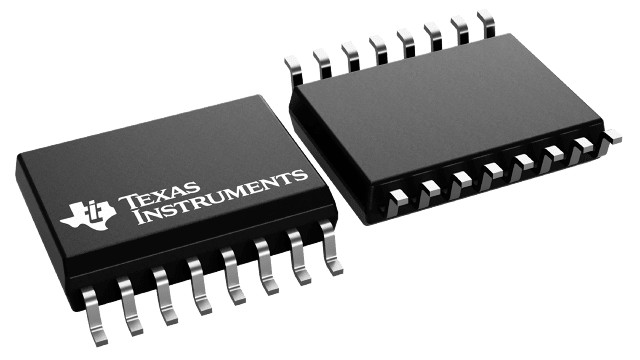

Manufacturer package reference image for SOIC (DW). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
