Manufacturer package reference image
3-phase sensored trapezoidal control BLDC gate driver for 0°C to +70°C applications
Key Specifications
| Complete manufacturer part number | UC3625DW |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 3-phase sensored trapezoidal control BLDC gate driver for 0°C to +70°C applications |
| Package / case | SOIC (DW) |
| Product category | Gate drivers |
| TI package code | DW |
| Pins | 28 |
| Operating temperature (manufacturer ordering record) | 0 °C to 70 °C |
| In stock | 12,109 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

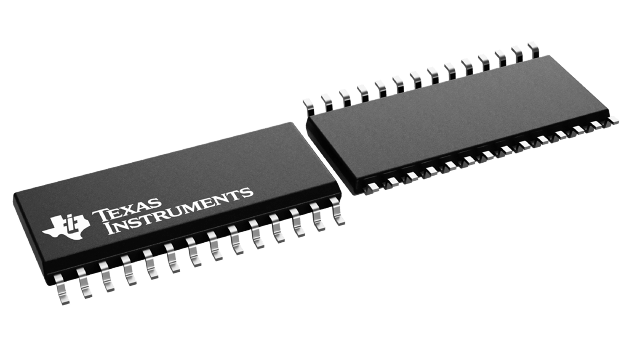

Manufacturer package reference image for SOIC (DW). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
