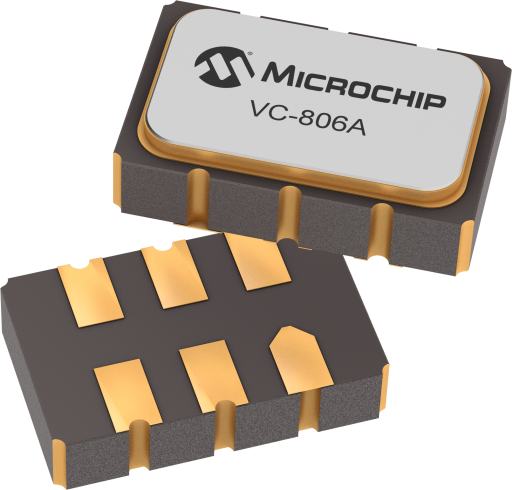

Manufacturer package reference image
LVDS, Crystal Oscillator, 5.0x3.2mm, 3.3V, -40C to +85C, +/-50ppm, 100MHz
Key Specifications
| Complete manufacturer part number | VC-806A-EDE-KAAN-100M000000 |
|---|---|
| Manufacturer | Microchip Technology |
| Description | LVDS, Crystal Oscillator, 5.0x3.2mm, 3.3V, -40C to +85C, +/-50ppm, 100MHz |
| Package / case | LDFN-6 |
| Product category | Oscillators |
| Pins | 6 |
| Manufacturer Description | LVDS, Crystal Oscillator, 5.0x3.2mm, 3.3V, -40C to +85C, +/-50ppm, 100MHz |
| Lead Count | 6 |
| Manufacturer Packing Media | T/R-LIM |
| Manufacturer Order Multiple | 100 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Operating temperature | To be confirmed |
| In stock | 7,377 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for LDFN-6. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
