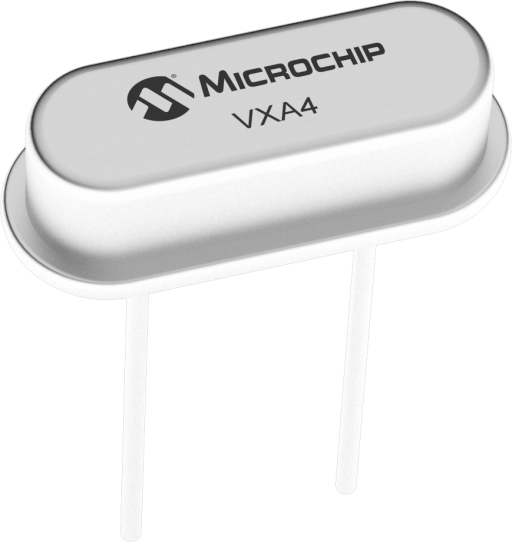

Manufacturer package reference image
HC-49/U 3.6MM TALL 2 LEAD CRYSTAL +/-30PPM -40C TO +85C 7.3728MHZ 49HC
Key Specifications
| Complete manufacturer part number | VXA4-1GE-20-7M37280000TR |
|---|---|
| Manufacturer | Microchip Technology |
| Description | HC-49/U 3.6MM TALL 2 LEAD CRYSTAL +/-30PPM -40C TO +85C 7.3728MHZ 49HC |
| Package / case | HC-49/U |
| Product category | TIMING AND COMMUNICATIONS GROUP |
| Pins | 2 |
| Manufacturer Description | HC-49/U 3.6mm tall 2 lead crystal, +/-30ppm, -40C to +85C, 7.3728MHz |
| Lead Count | 2 |
| Manufacturer Packing Media | BAG |
| Manufacturer Order Multiple | 1000 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Operating temperature | To be confirmed |
| In stock | 8,912 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for HC-49/U. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
