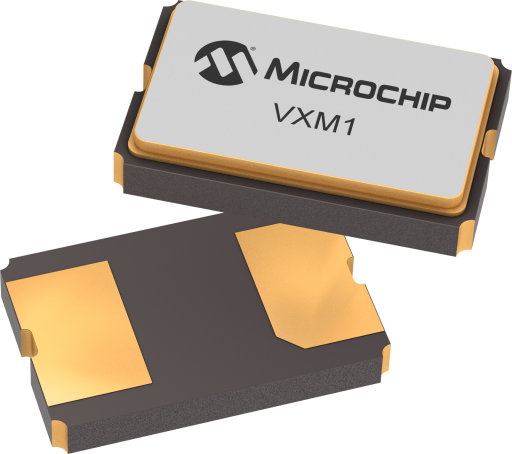

Manufacturer package reference image
12MHZ SMD CRYSTAL 5.0X3.2MM 2 PAD 20/30 -40 TO +85C 18PF 2TDFN
Key Specifications
| Complete manufacturer part number | VXM1-9003-12M0000000TR |
|---|---|
| Manufacturer | Microchip Technology |
| Description | 12MHZ SMD CRYSTAL 5.0X3.2MM 2 PAD 20/30 -40 TO +85C 18PF 2TDFN |
| Package / case | TDFN-2 |
| Product category | TIMING AND COMMUNICATIONS GROUP |
| Pins | 2 |
| Manufacturer Description | 12MHz SMD Crystal, 5.0x3.2mm, 2 PAD, 20/30 -40 to +85C, 18pF |
| Lead Count | 2 |
| Manufacturer Packing Media | T/R |
| Manufacturer Order Multiple | 1000 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Operating temperature | To be confirmed |
| In stock | 8,672 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for TDFN-2. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
