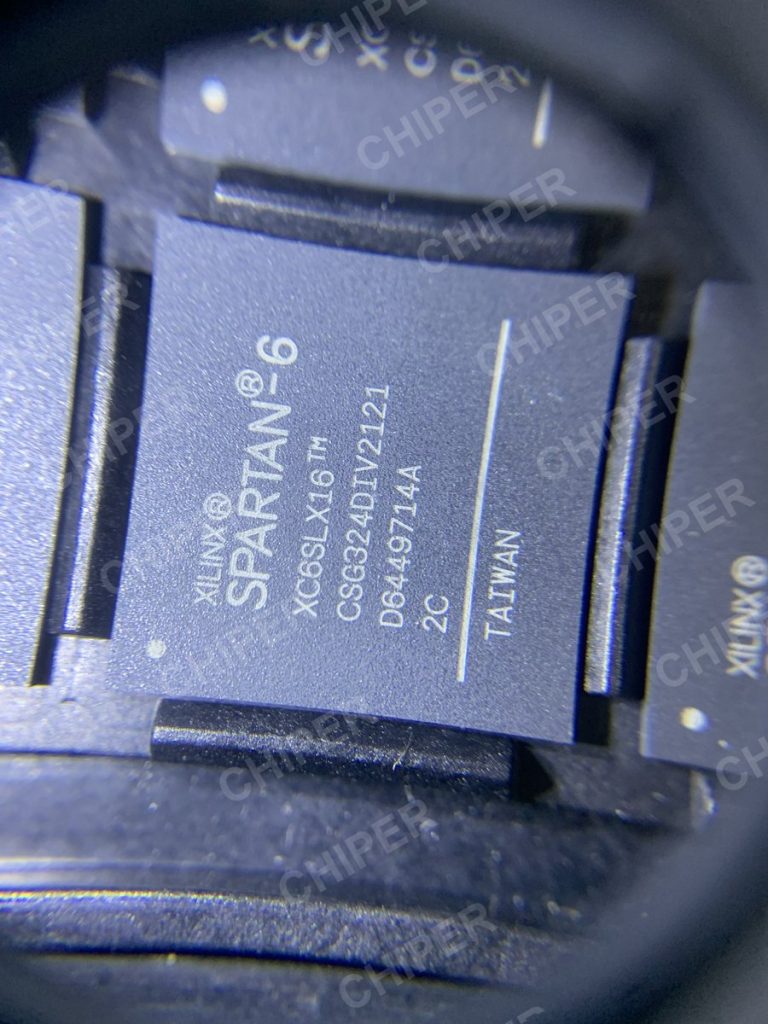

The Xilinx Spartan-6 XC6SLX16-2CSG324C is a 45 nm FPGA that integrates 14,579 logic cells with 576 Kb of block RAM and 32 DSP48A1 slices in a 324-pin chip-scale BGA package. Running from a 1.2 V core supply at the commercial temperature range and -2 speed grade, it provides a balanced mix of logic, memory and DSP resources for mid-range, cost-sensitive programmable-logic applications.
Key Specifications
| Manufacturer | Xilinx (AMD) |
| Manufacturer Part Number | XC6SLX16-2CSG324C |
| Product Category | FPGA – Field Programmable Gate Array |
| Package / Case | 324-CSPBGA (15 mm x 15 mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C to +85°C |
| Power Supply | Core (VCCINT) 1.2 V; I/O banks (VCCO) 1.2 V to 3.3 V |
| Logic Cells | 14,579 |
| Block RAM | 576 Kb |
| DSP48A1 Slices | 32 |
| User I/O | 232 |
| Memory Controller Blocks | 2 |
| Speed Grade | -2 |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 14,579 logic cells
- 576 Kb block RAM
- 32 DSP48A1 slices
- Low 1.2 V core power
- Two memory controller blocks
- 232 user I/O
- 45 nm process
- ISE / Vivado tool support
Applications
- Industrial control
- Communications and networking
- Digital signal processing
- Embedded processing
- Cost-sensitive designs
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
What logic density does the XC6SLX16 provide?
The XC6SLX16 offers 14,579 logic cells with 576 Kb of block RAM and 32 DSP slices.
Does the XC6SLX16 support memory interfaces?
Yes, it includes two memory controller blocks for external memory interfacing.
