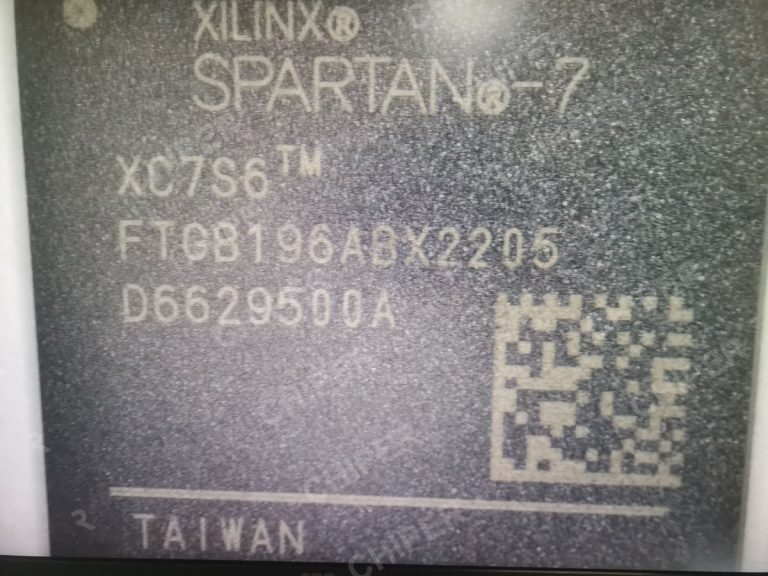

The Xilinx Spartan-7 XC7S6-1FTGB196I is a 28 nm FPGA that integrates 6,000 logic cells with 180 Kb of block RAM in a 196-ball chip-scale BGA package. Running from a 1.0 V core supply at the industrial temperature range and -1 speed grade, it provides modern, low-power programmable logic in a compact form factor for cost-sensitive industrial and embedded designs.
Key Specifications
| Manufacturer | Xilinx (AMD) |
| Manufacturer Part Number | XC7S6-1FTGB196I |
| Product Category | FPGA – Field Programmable Gate Array |
| Package / Case | 196-CSBGA (15 mm x 15 mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +100°C |
| Power Supply | Core (VCCINT) 1.0 V; I/O banks (VCCIO) 1.2 V to 3.3 V |
| Logic Cells | 6,000 |
| Block RAM | 180 Kb |
| User I/O | 100 |
| Speed Grade | -1 |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 6,000 logic cells
- 180 Kb block RAM
- Low 1.0 V core power
- Industrial temperature range
- 100 user I/O
- Compact 196-ball CSBGA
- 28 nm process
- Vivado tool support
Applications
- Industrial control
- Interface and glue logic
- Sensor interfacing
- Simple embedded processing
- Cost-sensitive designs
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
What logic density does the XC7S6 provide?
The XC7S6 offers 6,000 logic cells with 180 Kb of block RAM.
What core voltage does the Spartan-7 use?
The core operates at approximately 1.0 V, with I/O banks powered from 1.2 V to 3.3 V.
