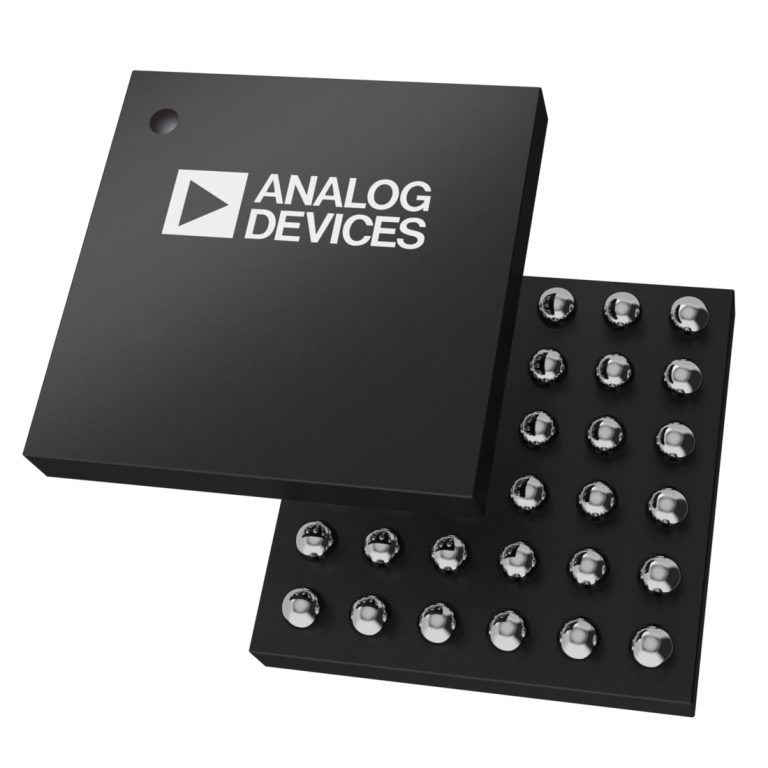

Listing photo. Request current-lot confirmation.
16-Bit, 16-Channel, 1 MSPS, Easy Drive Multiplexed SAR ADC
Key Specifications
| Complete manufacturer part number | AD4696BCBZ-RL7 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 16-Bit, 16-Channel, 1 MSPS, Easy Drive Multiplexed SAR ADC |
| Package / case | 36-Ball WLCSP (2.96mm x 2.96mm x 0.50mm) |
| Product category | Analog-to-digital converters |
| Series / Family | AD4696 |
| Power supply | 1.8 V / 3.3 V |
| Pins | 36 |
| Mounting Type | Surface Mount |
| Resolution | 16-bit |
| Channels | 16 |
| Sampling Rate | 1 Msps |
| Interface | SPI |
| Architecture | Easy Drive SAR |
| Power | 8 mW |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 8,907 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Request a Quote
Part of the ADI Precision ADC series.
