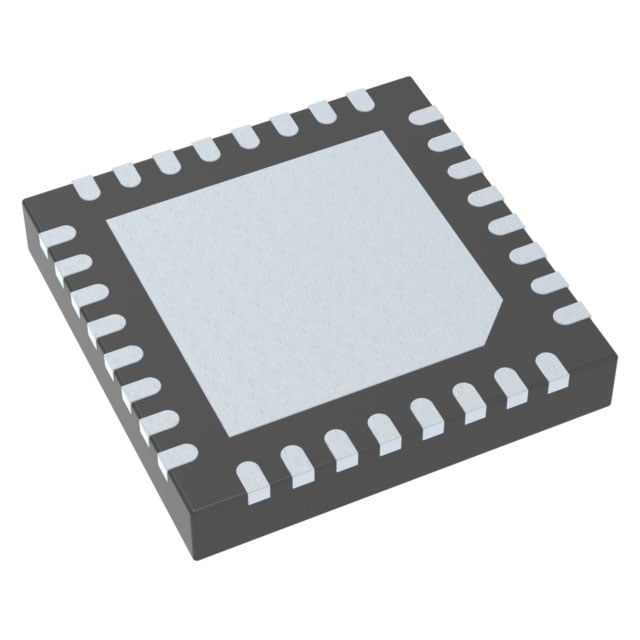

Listing photo. Request current-lot confirmation.
16-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter
Key Specifications
| Complete manufacturer part number | AD9266BCPZ-20 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 16-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter |
| Package / case | 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) |
| Product category | Analog-to-digital converters |
| Pins | 32 |
| Number of Bits | 16 |
| Sampling Rate | 20M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Architecture | Pipelined |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 9,994 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
