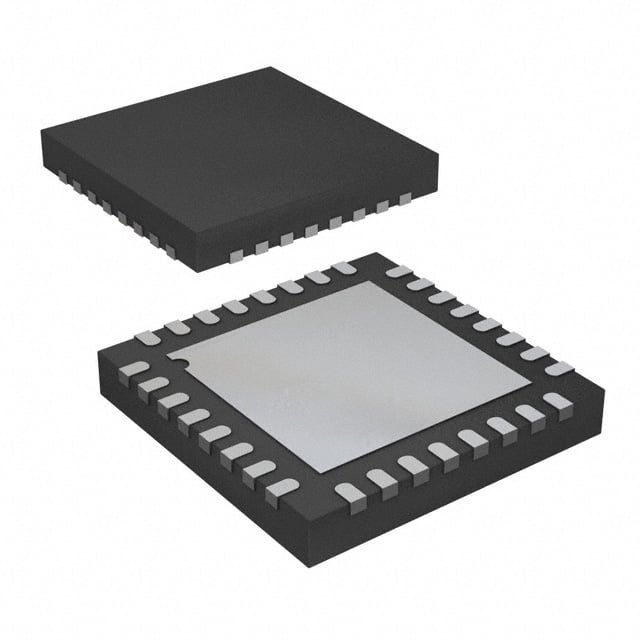

Listing photo. Request current-lot confirmation.
14-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS 3 V A/D Converter
Key Specifications
| Complete manufacturer part number | AD9245BCPZ-40 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 14-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS 3 V A/D Converter |
| Package / case | 32-Lead LFCSP (5mm x 5mm w/ EP) |
| Product category | Analog to digital converters |
| Pins | 32 |
| Number of Bits | 14 |
| Sampling Rate | 40M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Architecture | Pipelined |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.25V ~ 3.6V |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 5,006 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
