Manufacturer package reference image
800-mA 15-V linear voltage regulator
Key Specifications
| Complete manufacturer part number | LM1117MPX-3.3/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 800-mA 15-V linear voltage regulator |
| Package / case | SOT-223 (DCY) |
| Product category | Voltage regulators |
| Series / Family | LM1117 |
| Power supply | Up to 15 V input |
| Pins | 4 |
| TI package code | DCY |
| Mounting Type | Surface Mount |
| Output Current | 800 mA |
| Output Voltage | Fixed 3.3 V |
| Dropout Voltage | 1.2 V max at 800 mA (1.1 V typical) |
| Output Accuracy | ±1% (fixed output) |
| Input Voltage | Up to 15 V |
| Protection | Current limit and thermal shutdown |
| Temperature range (manufacturer ordering record) | 0 °C to 125 °C |
| In stock | 1,168 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

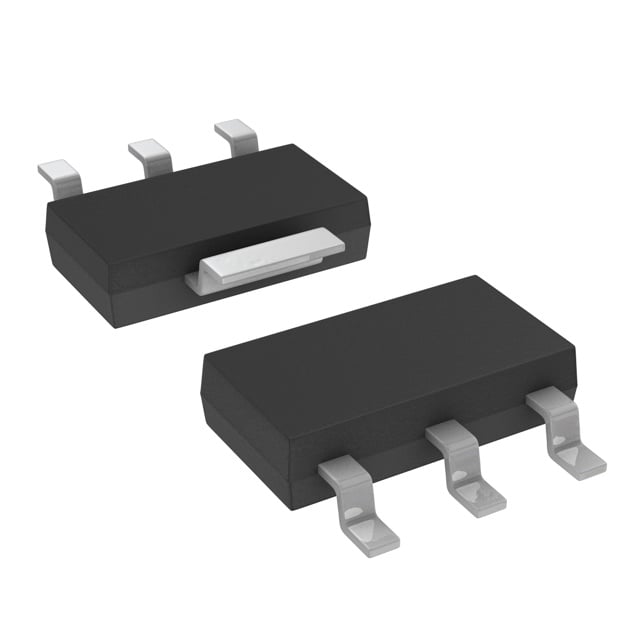

Manufacturer package reference image for SOT-223 (DCY). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
Request a Quote
Part of the TI LDO series.
