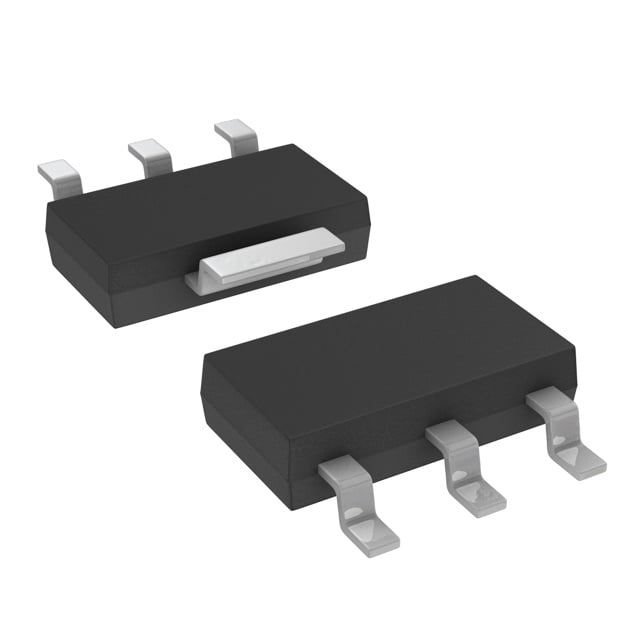

The Texas Instruments LM1117MPX-5.0/NOPB is an 800 mA low-dropout linear regulator delivering a fixed 5.0 V output in the SOT-223 package, supplied on tape and reel. With ±1% output accuracy and 1.2 V maximum dropout, it is a compact solution for 5 V rails in volume production, protected by on-chip current limiting and thermal shutdown.
Key Specifications
| Manufacturer | Texas Instruments |
| Exact Manufacturer Part Number | LM1117MPX-5.0/NOPB |
| Product Category | Power Management – Voltage Regulators |
| Series / Family | LM1117 |
| Package / Case | SOT-223 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C to +125°C |
| Power Supply | Up to 15 V input |
| Output Current | 800 mA |
| Output Voltage | Fixed 5.0 V |
| Dropout Voltage | 1.2 V max at 800 mA (1.1 V typical) |
| Output Accuracy | ±1% (fixed output) |
| Input Voltage | Up to 15 V |
| Protection | Current limit and thermal shutdown |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 800 mA low-dropout linear regulator
- 1.2 V maximum dropout at full load
- Current-limit and thermal-shutdown protection
- Output tolerance ±1% for fixed versions
- Stable with 10 µF output capacitor
- Low quiescent current
Applications
- 5 V logic and sensor rails
- Interface power
- Consumer electronics
- Volume production
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
What output does the MPX-5.0 provide?
It provides a fixed 5.0 V output at up to 800 mA.
Does the LM1117 need a large output capacitor?
No, it remains stable with a small 10 µF output capacitor.
