Manufacturer package reference image
3.5KB Flash, 256 EEPROM, 256B RAM, 12 I/O, 10-bit PWMs, CCP, CWG, CLC 1.8V-5.5V
Key Specifications
| Complete manufacturer part number | PIC16F18323T-I/ST |
|---|---|
| Manufacturer | Microchip Technology |
| Description | 3.5KB Flash, 256 EEPROM, 256B RAM, 12 I/O, 10-bit PWMs, CCP, CWG, CLC 1.8V-5.5V |
| Package / case | TSSOP-14 |
| Product category | EEPROMs |
| Pins | 14 |
| Manufacturer Description | 3.5KB Flash, 256 EEPROM, 256B RAM, 12 I/O, 10-bit PWMs, CCP, CWG, CLC 1.8V-5.5V |
| Lead Count | 14 |
| Manufacturer Packing Media | T/R |
| Manufacturer Order Multiple | 2500 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Operating temperature | To be confirmed |
| In stock | 5,614 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

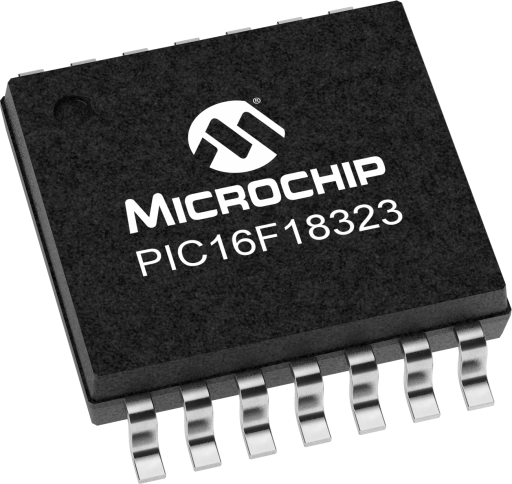

Manufacturer package reference image for TSSOP-14. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
