Manufacturer package reference image
7KB, 512B RAM, 256B EEPROM, 10b ADC, Comp, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG
Key Specifications
| Complete manufacturer part number | PIC16F18324-E/JQVAO |
|---|---|
| Manufacturer | Microchip Technology |
| Description | 7KB, 512B RAM, 256B EEPROM, 10b ADC, Comp, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG |
| Package / case | UQFN-16 |
| Product category | EEPROMs |
| Pins | 16 |
| Manufacturer Description | 7KB, 512B RAM, 256B EEPROM, 10b ADC, Comp, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG |
| Lead Count | 16 |
| Manufacturer Packing Media | TUBE |
| Manufacturer Order Multiple | 91 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Operating temperature | To be confirmed |
| In stock | 5,283 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

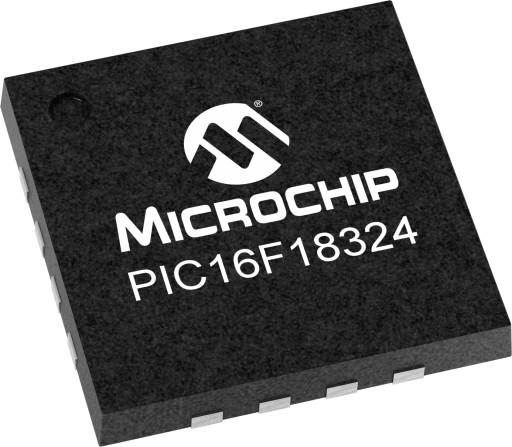

Manufacturer package reference image for UQFN-16. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
